High Flow Capacity Plain Dutch Woven Filter Cloth For Water Treatment
ADVANTAGES OF POROMETRIC FILTER MEDIA:
• Increased permeability
• Reduction of highest, local pore velocity
• Good backwashing properties
• High porosity
• High dirt holding capacity
• Good price-performance ratio
• Poresize down to 18 µm
• Seawater restistant down to 20 µm
Characteristics of woven filter mesh
Acid-resisting, alkali-resisting and anti-corrosion.
Hihg strength, good tension toughness and abrasion performance, durable in use.
Resistance to high temperature oxidation.
Highly polished, no need to do any surface treatment, with convient and simple maintenance.
Applications of woven filter mesh
In exreme corrosion environment conditions sieving and filtering.
Seawater desalination equipment.
Petroleum,petrochemical equipment.
Here have Four woven type filter cloth
Woven Filter Cloth Detailed specifications:
1.Plain Weave Filter Mesh/Filter Screen
| Mesh | Wire dia | Aperture |
| mm | mm |
| 1x1 | 2.03 | 23.37 |
| 2X2 | 1.60 | 11.10 |
| 3X3 | 1.37 | 7.09 |
| 4X4 | 1.60 | 4.75 |
| 4X4 | 1.19 | 5.16 |
| 5X5 | 1.04 | 4.04 |
| 6X6 | .89 | 3.35 |
| 8X8 | .71 | 2.46 |
| 10X10 | .64 | 1.91 |
| 10X10 | .51 | 2.03 |
| 12X12 | .584 | 1.52 |
| 12X12 | .508 | 1.60 |
| 14X14 | .584 | 1.22 |
| 14X14 | .508 | 1.30 |
| 16X16 | .457 | 1.13 |
| 18X18 | .432 | .98 |
| 20X20 | .508 | .76 |
| 20X20 | .406 | .86 |
| 24X24 | .356 | .70 |
| 30X30 | .330 | .52 |
| 30X30 | .305 | .54 |
| 30X30 | .229 | .62 |
| 35X35 | .279 | .45 |
| 40X40 | .254 | .38 |
| 50X50 | .229 | .28 |
| 50X50 | .203 | .31 |
| 60X60 | .191 | .23 |
| 60X60 | .178 | .25 |
| 70X70 | .165 | .20 |
| 80X80 | .165 | .15 |
| 80X80 | .140 | .18 |
| 90X90 | .127 | .16 |
| 100X100 | .114 | .14 |
| 100X100 | .102 | .15 |
| 100X100 | .089 | .17 |
| 110X110 | .1016 | .1295 |
| 120X120 | .0940 | .1168 |
| 150X150 | .0660 | .1041 |
| 160X160 | .0635 | .0965 |
| 180X180 | .0584 | .0838 |
| 200X200 | .0533 | .0737 |
| 250X250 | .0406 | .0610 |
| 270X270 | .0406 | .0533 |
| 300X300 | .0381 | .0457 |
| 325X325 | .0356 | .0432 |
| 400X400 | .0254 | .370 |
| 500X500 | .0254 | .0254 |
| 635X635 | .0203 | .0203 |
2.Plain Dutch Weave Filter Mesh /Filter Screen
| Mesh | Wire dia(inch) | Absolute Filtration Rating( μm ) | Nominal Filtration Rating( μm ) |
| 8X85 | .014X.0126 | 318 - 340 | 250 - 255 |
| 12X64 | .024X.0165 | 270 - 285 | 200 - 205 |
| 14X88 | .020X.013 | 225 - 245 | 150 - 155 |
| 20X150 | .0098X.007 | 155 - 165 | 100 - 105 |
| 24X110 | .015X.010 | 115 - 125 | 80 - 85 |
| 30X150 | .009X.007 | 95 - 100 | 65 - 70 |
| 40X200 | .007X.0055 | 65 - 70 | 55 - 60 |
| 50X250 | .0055X.0045 | 55 - 60 | 40 - 45 |
| 80X400 | .0049X.0028 | 43 - 48 | 35 - 40 |
3.Twilled Dutch Weave Filter Mesh /Filter Screen
| Mesh | Wire dia(inch) | Absolute Filtration Rating(μm) | Nominal Filtration Rating(μm) |
| 20x250 | .0098x.0079 | 110-120 | 98-105 |
| 30x360 | .0098x.0060 | 90-100 | 80-84 |
| 40x560 | .0070x.0040 | 70-75 | 47-52 |
| 120x400 | .0040x.0025 | 50-55 | 37-43 |
| 120x160 | .0040x.0025 | 40-45 | 28-32 |
| 80x700 | .0040x.0030 | 35-40 | 24-26 |
| 200x600 | .0024x.0018 | 28-32 | 19-21 |
| 165x800 | .0028x.0020 | 24-26 | 14-16 |
| 165x1400 | .0028x.0016 | 16-18 | 9-11 |
| 200x1400 | .0028x.0016 | 12-14 | 5-6 |
| 250x1400 | .0022x.0016 | 11-12 | 3-4 |
| 325x2300 | .0015x.0010 | 8-9 | 2-3 |

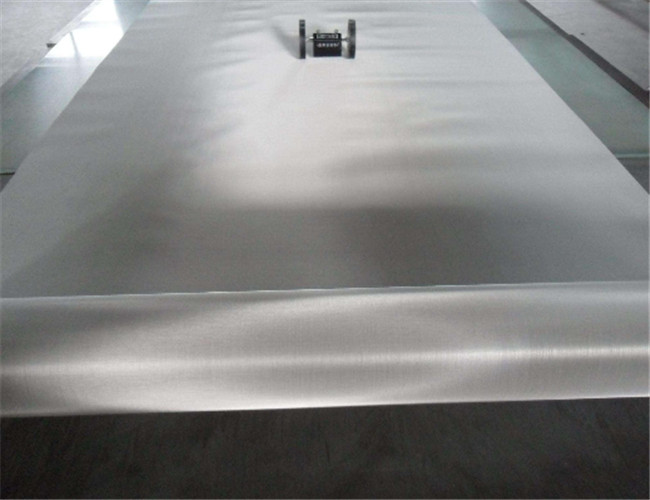

Woven filter wire cloth detailed image
