Flexible Handrail Fences Balustrade Cable Mesh , Stainless Steel Cable Mesh
Cable Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.
Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.Finished diamond mesh style when it is stretched at 90 degree angle ;
| Hole Size (Opening) | 1.2MM(3/64) (7 x 7 ) | 1.6MM(1/16) (7 x 7 ) | 2.0MM(5/64) (7 x 7 ) | 2.4MM(3/32) (7 x 7 ) | 3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | F-1235 | | | | |
| 25 x 42mm | F-1225 | F-1625 | | | |
| 30 x 52mm | F-1230 | F-1630 | F-2030 | | |
| 35 x 60mm | F-1235 | F-1635 | F-2035 | | |
| 38 x 66mm | F-1238 | F-1638 | F-2038 | F-2438 | |
| 40 x 69mm | F-1240 | F-1640 | F-2040 | F-2440 | F-3040 |
| 50 x 86mm | F-1250 | F-1650 | F-2050 | F-2450 | F-3050 |
| 60 x 104mm | F-1260 | F-1660 | F-2060 | F-2460 | F-3060 |
| 70 x 120mm | F-1270 | F-1670 | F-2070 | F-2470 | F-3070 |
| 76 x 131mm | F-1276 | F-1676 | F-2076 | F-2476 | F-3076 |
| 80 x 138mm | F-1280 | F-1680 | F-2080 | F-2480 | F-3080 |
| 90 x 154mm | F-1290 | F-1690 | F-2090 | F-2490 | F-3090 |
| 100 x 173mm | F-12100 | F-16100 | F-20100 | F-24100 | F-30100 |
| 120 x 206mm | F-12120 | F-16120 | F-20120 | F-24120 | F-30120 |
Wire Rope Mesh Details
| Mesh Type | Ferruled or Knotted |
| Mesh Angle | 60 degree in rhombus shape |
| Mesh Orientation | Horizontal or Vertical |
| Panle Measurement | Custom-made in width and lenght |
| Finished | Black Oxide |
| Application | Balustrade , Facade Cladding , Animal Enclosure , Aviary Netting |
Wire rope black oxide mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ;

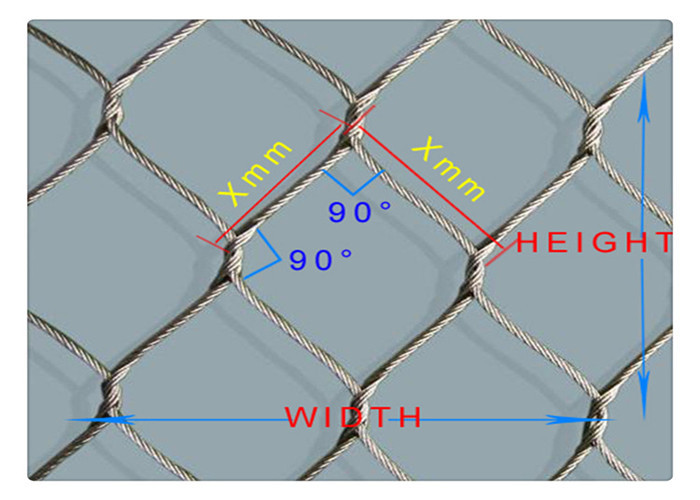

Finished diamond mesh style when it is stretched at 90degree angle ;
RFQ Of Wire Rope Mesh Fencing :
1. Advantage of Wire Rope Net
Unique design. 3D-structure, Flexible, Light weight, . Corrosion resistant, Maintenaance free. 10 years rust guaranteed.
2. 304 or 316 stainless steel?
- Generally the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 almost same. we suggest to choose 316 stainless steel.
3. What is the different with cable and opening ?
- The heavier cable or smaller opening, the cost more expensive.
4. Is it safety ?
- Full mesh meet test under EN1263.1.2014
5. How to install the mesh !
- Full of our piece is manufactured with special edge design. install by yourself easily.
Features:
Unique design idea, X tend mesh style
Flexible, elegant, discreet, filigreed, multifunctional.
Corrosion resistant,allows strong airflow.
Fully pro-enviroment, recyclable, no toxic and flammable.
Easy installation
Once steel cable mesh is using, maintenance free, don't ask any special cleaning or coating.
Long use life
