Brand Name : XR
Model Number : CLF-015
Certification : SGS
Place of Origin : CHINA
MOQ : 1 Unit
Price : Negotiation
Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 3000 EA Per Week
Delivery Time : 7-10 Days After Get The Payment
Packaging Details : Package Film For Each Piece,Several Pieces Packed In 1 Carton
Size : As Your Request
Material : Metal
Color : OEM
Feature : Smooth
Connection : Flange
Name : Chain Link Fence Fittings
Accommodates : Accommodates 4 ft., 5 ft., 6 ft. chain link fence
Corner Post Size : 2-3/8''
2-3/8" CORNER POST KIT For Chain Link Fence Accessories / Chain Link Fence Fittings
Chain Link Fence Accessories Description
The Corner Post Kit includes the parts required to install chain link on a corner terminal post. Includes one terminal cap, two rail end caps, three brace bands, six tension bands and 12 carriage bolts. Also the kit is really easy to install and can be installed easily on posts.
* Used with 2-3/8" diameter posts
* Order one package per post
* Galvanized finish
* Overall length 13 2/5 inch
* Overall Height 3 1/3 inch
* Accommodates 4 ft., 5 ft., 6 ft. chain link fence
Chain Link Fence Accessories Specifications
Accessory Type | Chain Link Fence Fittings | Includes | Cap/top,Hardware |
Color Family | Silver | Material | Metal |
Commercial/Residential Use | Commercial / Residential | Product Weight (lb.) | 3.09 lb |
Features | Galvanized | Returnable | 90-Day |
Galvanzied chain link fence fittings can be PVC coated or Galvanized.
1.Flat iron : support chain link fence
2.Brace band : link tensioner & post
3.Tension band : Link the flat iron & post
4.Tensioner : secure the line wire
5.Line wire : Folding the chain link mesh
6.Tie wire & Stirrup wire : secure the line wire & post and secure the post and the mesh.
7.Any other types fittings and accessories for chain link fence installation
Other Chain Link Fittings for your check
Sizes | Lbs. Each | |
Brace Bands - Galvanized - Heavy - 1" wide x 1/8" thick | 1 7/8" | 0.29 |
2 3/8" | 0.35 | |
2 7/8" | 0.42 | |
Brace Bands - Galv. - 2 Way 180 Degree - Heavy - 1" wide x 1/8" | 1 7/8" | 0.344 |
2 3/8" | 0.4 | |
2 7/8" | 0.424 | |
Brace Bands - Galv. - Regular - 3/4" wide x 12 ga | 1 5/8" | 0.143 |
1 7/8" | 0.165 | |
Tension Bands - Galv. Heavy - 1" wide x 1/8" | 2 3/8" | 0.41 |
2 7/8" | 0.42 | |
Tension Bars - Galvanized - Flat - 3/4" wide x 3/16" | 6' | 2.74 |
8' | 3.68 | |
Floor Flanges - Galvanized Steel Plates - with four 5/8" Holes | 3" x 6" x 1/4" | 1.323 |
Floor Flanges - Galvanized Steel Plates - with four 5/8" Holes | 6" x 6" x 1/4" | 2.26 |
Sleeves - Galvanized | 6" x 1 5/8" O.D. | 0.5 |
Rail Ends - PS | 1 5/8" | 0.3 |
Post Caps - Galvanized - PS | 1 5/8" | 0.146 |
1 7/8" | 0.205 | |
2 3/8" | 0.269 |

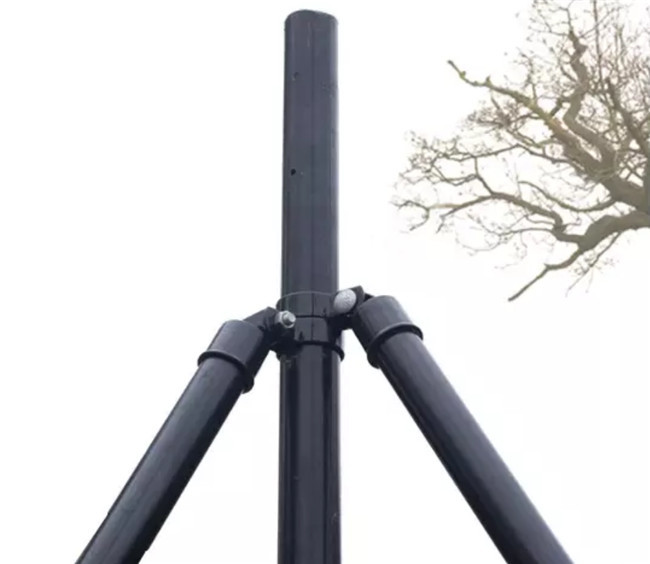

Where are the parts/Fittings/Accessories on the chain link fence
MOQ | 1 PCS |
SAMPLE | FREE---YOU ONLY NEED PAY THE FREIGHT |
FINISH | HOTDIT GALVANIZED OR PVC COATED |
CHAIN LINK FENCE | IF YOU NEED THE CHAIN LINK FENCE, WE HAD TOO |
![]() |
