Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

  • 1
  • 2
  • 3

Brand Name : XR

Model Number : CLF-027

Certification : CE

Place of Origin : CHINA

MOQ : One Roll

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 7-10 days after get the payment

Packaging Details : Pallets

Wire Gauge : 2.5mm-4.0mm

Surface Treatment : Hot-dip Galvanized

Frame : 32mm, 38mm, 42mm

Aperture : 50*50mm-60*60mm

Length : 1.5m-4.0m

Hole Shape : Diamand

Height : 1.0m-3.0m

Usage : Fence Mesh

Contact Now

Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

Chain Link Fencing Fabric Specification:

Material

low carbon steel wire, Q195
carbon steel pipe, Q235
AU Standard Specification

Wire diameter:2.7mm-4.0mm

Mesh opening:58x58mm,60mm*60mm,50mm*50mm

Frame pipe:32mm O.D.33.4mmO,D

Pipe thickness:2.0mm--3.0mm

HXL:6'x10' 6'X12'

Surface finish

(Hot dipped galvanising)

Wire zinc coating

About 200g/m2(28 micron)

Pipe zinc coating

About 300g/m2(42 micron)

Fence base Hot dipped galvanising,sizes are suit to pipe diameter.
Base feet size 762mm*460mm,customerized colors
Manufacturer details The top and bottom horizontal pipes are crimped flatted to loading more.
Package On steel pallet

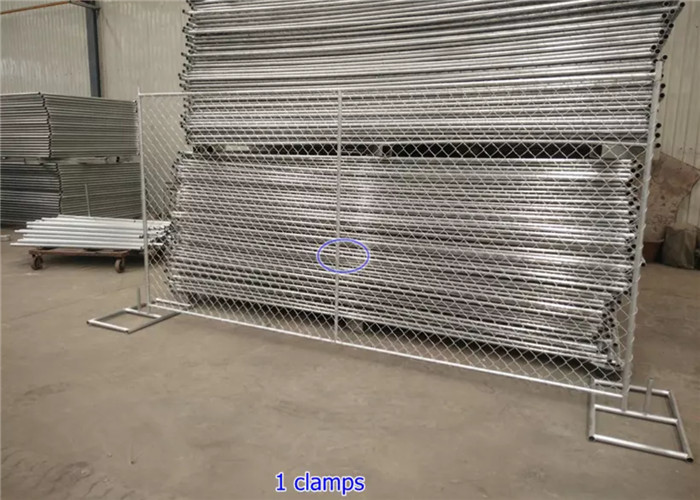

Chain link temporary security fence we have two type, one have 1 clamp, and have 2 clamps, please check the pictures:

Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 FeetChain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

And all the size, we will measure, to make sure the all size is right!

Such as Wire Dia, the tube, the mesh opening, and the most important thing is to check the mesh is tight!!!

Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

Look the Tie wire, we will use 6-8 pcs for every panels to make sure the tube and the wire panel is tight, so you will dont need worried about the Wind proof any more

Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

our tie wire on the side, we will make sure it is tight too. The tie wire we will used the hot-dip galvanzied wire tooChain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

Every Panel to other panel only need a clip

Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

Chain Link Fence base feet: Galvanized base feet ( and this feet will make the fence easy to used, and the size is 76mm*46mm, so is it big and strong. The feet tube thickness is 1.6mm)

Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

Look at this picture,only put the panel to the feet, the is ok. So easy, right?Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

2. Chain link fence features:


1).It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.


2).Weather resistant and durable, and will last much longer; The temporary fences are light and easy to handle, while being strong and robust at the same time;


3).The feet are removable which makes transportation and storage much easier and more efficient

3. Easy to Erect - four metres a minute

Light and easy to handle
Create a gate at any point on the perimeter
Economical temp fence - can be used time after time
Delivered accompanied by fork lift for easy distribution
Constructed from heavy gauge galvanized tube and welded mesh infill

4. Construction chain link fence productive process:
Pre hot dip galvanized wire drawing--- cut wire and pipes ---wire weave---cut the corners of the mesh---Pre hot dip galvanized pipes welded—polish the welds—paint anti-rust epoxy—spray sliver powder coat on each welds—stacking—packaging

Chain Link Temporary Security Fencing Fabric Hot Dip Galvanized 6 Feet X 12 Feet

Why Choose us?

1. Strict quality inspection

Generally we have special people to test product quality double times. First time we test the material quality,

Second time we test finished product quality.

We just want our customers to be satisfied with our products.

2. Professional drawings design

Usually some customers need us to help them to design drawings. Our team are glad to help our customers to work out problems. And we have ourself drawing design team.

3. Our company:

design drawing as clients requirement

Personnel for prepare sample:5

No. of QA/QC Inspector(s): 5 people

Export Markets: Europe, South America, Australia, North America, Asia etc.
