Brand Name : XR
Model Number : SSWMF
Certification : CE
Place of Origin : CHINA
MOQ : 1 EA
Price : Negotiated
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 5000 Units Per Week
Delivery Time : 7-10 Days After Get Your Payment
Packaging Details : Water-Proof Plastic Film And Then Wooden Case
Name : Stainless Steel Wire Mesh Screen
Layer : Single Layer,Double Layer,Multilayers
Hole Shape : Square Hole
Roll Size : 30 M Length
Material : Carbon Steel, Stainless Steel 304,316
Application : Filteration And Seperation
Surface : Smooth Screen
Mesh Count : 2-635 Mesh
500 400 300 200 100 80 70 25 19 Micron Stainless Steel Woven Wire Mesh Screen 316 310 S 430 904L
Woven Wire Mesh Screen Description
Material List
AISI | C | Si | Mn | P | s | Cr | Ni |
201 | ≤0.15 | 1 | 5.5-7.5 | ≤0.06 | ≤0.03 | 16-18 | ≤0.25 |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18-20 | 8-9 |
304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18-20 | 9-10 |
316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16-18 | 10-12 |
316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16-18 | 12-15 |
Wire Diameter | 0.025mm-1.8mm |
Aperture | 0.038mm-10.9mm |
Roll Width | 0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request. |
Roll Length | 30m or 50m,any length available at request. |
Sample | Free sample sent on request. |
Performance | Corrosion-resisting, Wear-resisting, Tear-resisting. |
Usage | Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, enviroment protection,mine, airspace, paper-making, electronic, metallurgy etc. |
Woven Wire Mesh Screen Detailed Specification
Material | 304L,304 |
Thickness | 0.3-12.0mm |
Mesh size | plain weave and twill weave from 5 to 600 mesh. |
Wire diameter | 0.018-2.03mm |
Weaving Type | Plain weave, twilled weave, Dutch weave. |
Packaging Details | inner kraft, outside plastic cloth, put into wooden pallet or case |
Feature | High tension,high precision,low elongation,high yield strength,high wear resistance,static electricity,thermal resistance |
Application | Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets. |
Wire Mesh Filter Cloth Dutch Woven | ||||
Gauge No. | Mesh/Inch (Warp × Weft) | Wire Diameter (Warp × Weft) | Reference Aperture (um) | Weight/sq. (kg) |
32# | 8 × 62 | 0.63mm × 0.45mm | 300 | 5.42 |
40# | 10 × 79 | 0.50mm × 0.355mm | 250 | 3.16 |
48# | 12 × 64 | 0.58mm × 0.40mm | 280 | 2.9 |
55# | 14 × 88 | 0.40mm × 0.30mm | 180 | 2.54 |
76# | 19 × 140 | 0.315mm × 0.20mm | 140 | 1.88 |
80# | 20 ×300 | 0.35mm × 0.20mm | - | 3.6 |
95# | 24 × 110 | 0.355mm × 0.25mm | 120 | 2.45 |
100# | 25 × 140 | 0.28mm × 0.20mm | 100 | 1.95 |
120# | 30 × 150 | 0.25mm × 0.18mm | 80 | 1.68 |
140# | 35 × 175 | 0.224mm × 0.16mm | 71 | 1.52 |
160# | 40 × 200 | 0.20mm × 0.14mm | 60 | 1.40 |
180# | 45 × 250 | 0.16mm × 0.112mm | 56 | 1.09 |
200# | 50 × 250 | 0.14mm × 0.11mm | 53 | 1.04 |
220# | 55.5 × 280 | 0.14mm × 0.10mm | 50 | 0.92 |
240# | 65 × 330 | 0.11mm × 0.08mm | 36 | 0.71 |
280#(1) | 70 × 350 | 0.11mm × 0.08mm | 35 | 0.72 |
280#(2) | 70 × 385 | 0.11mm × 0.07mm | 32 | 0.75 |
300# | 78 × 700 | 0.11mm × 0.08mm | 30 | 1.39 |
315#(1) | 80 × 400 | 0.10mm × 0.065mm | 40 | 0.62 |
315#(2) | 80 × 600 | 0.10mm × 0.06mm | - | - |
315#(3) | 80 × 800 | 0.15mm × 0.04mm | - | - |
320# | 81 × 780 | 0.10mm × 0.07mm | 30 | 1.22 |
354# | 90 × 550 | 0.12mm × 0.05 | - | - |
Roll width: 1-1.6m |
Wire Mesh Filter Cloth Dutch Woven | ||||
Gauge No. | Mesh/Inch (Warp × Weft) | Wire Diameter (Warp × Weft) | Reference Aperture (um) | Weight/sq. (kg) |
360# | 91 × 787 | 0.10mm × 0.10 | 25 | 1.24 |
400# | 101 × 900 | 0.10mm × 0.10 | 20 | 1.22 |
472# | 120 × 400 | 0.10mm × 0.10 | - | - |
500# | 127 × 1100 | 0.07mm × 0.07 | 17 | 0.81 |
630# | 160 × 1500 | 0.063mm × 0.063 | 15 | 0.62 |
650#(1) | 165 × 400 | 0.017mm × 0.017 | - | - |
650#(2) | 165 × 600 | 0.017mm × 0.017 | - | - |
650#(3) | 165 × 800 | 0.017mm × 0.017 | 25 | - |
650#(4) | 165 × 1100 | 0.017mm × 0.017 | - | - |
650#(5) | 165 × 1400 | 0.017mm × 0.017 | 16 | 0.76 |
685# | 174 × 700 | 0.063mm × 0.063 | 13 | 0.61 |
787#(1) | 200 × 600 | 0.071mm × 0.071 | - | - |
787#(2) | 200 × 800 | 0.071mm × 0.071 | - | - |
787#(3) | 200 × 1400 | 0.071mm × 0.071 | 12 | 0.8 |
795# | 202 × 1760 | 0.05mm × 0.05 | 10 | 0.6 |
850# | 216 × 1860 | 0.045mm × 0.045 | 9 | - |
1000# | 254 × 2000 | 0.04mm × 0.04 | 8 | 0.5 |
1125# | 285 × 2235 | 0.036mm × 0.036 | 7 | - |
1228# | 312 × 2100 | 0.035mm × 0.035 | - | - |
1250# | 318 × 2235 | 0.036mm × 0.036 | - | - |
1280# | 325 × 2300 | 0.035mm × 0.035 | 5 | 0.45 |
1575# | 400 × 3100 | 0.035mm × 0.035 | 3 | - |
Roll width: 1-1.6m |
Woven Wire Mesh Screen Benifits
Smooth surface with no sharp edges, burrs or acute angles. |
Anti-abrasive & anti-corrosive in nature, and high filtration capacity. |
Available in different size and variants according customers order. |
Woven Wire Mesh Screen Application
![]() |

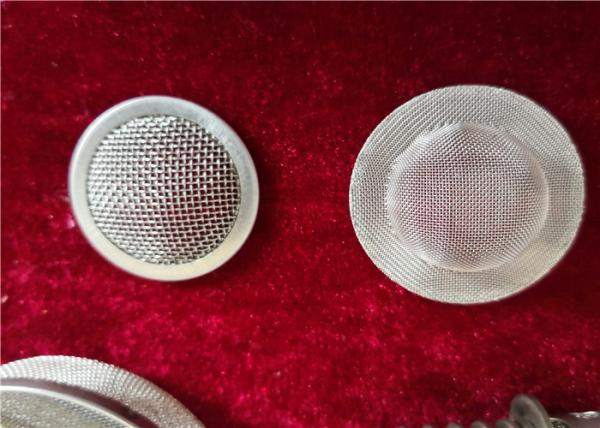

19 Micron 904L Stainless Steel Woven Wire Mesh Screen Images |
