304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Steel Woven Mesh
Filter Mesh Brief Information
Wire diameter:0.025mm-1.8mm
Apeature: 0.038mm-10.9mm
Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.
Roll length:30m or 50m,any length available at request.
Sample:Free sample sent on request.
Performance : Corrosion-resisting, Wear-resisting, Tear-resisting.
Uses: Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, enviroment protection,mine, airspace, paper-making, electronic, metallurgy etc.
Filter Mesh Detailed Parameter
| Material | 304L,304 |
| Thickness | 0.3-12.0mm |
| Mesh size | plain weave and twill weave from 5 to 600 mesh. |
| Wire diameter | 0.018-2.03mm |
| Weaving Type | Plain weave, twilled weave, Dutch weave. |
| Packaging Details | inner kraft, outside plastic cloth, put into wooden pallet or case |
| Feature | High tension,high precision,low elongation,high yield strength,high wear resistance,static electricity,thermal resistance |
| Application | Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets. |
| Wire Mesh Filter Cloth Dutch Woven |
| Gauge No. | Mesh/Inch (Warp × Weft) | Wire Diameter
(Warp × Weft) | Reference Aperture
(um) | Weight/sq.
(kg) |
| 32# | 8 × 62 | 0.63mm × 0.45mm | 300 | 5.42 |
| 40# | 10 × 79 | 0.50mm × 0.355mm | 250 | 3.16 |
| 48# | 12 × 64 | 0.58mm × 0.40mm | 280 | 2.9 |
| 55# | 14 × 88 | 0.40mm × 0.30mm | 180 | 2.54 |
| 76# | 19 × 140 | 0.315mm × 0.20mm | 140 | 1.88 |
| 80# | 20 ×300 | 0.35mm × 0.20mm | - | 3.6 |
| 95# | 24 × 110 | 0.355mm × 0.25mm | 120 | 2.45 |
| 100# | 25 × 140 | 0.28mm × 0.20mm | 100 | 1.95 |
| 120# | 30 × 150 | 0.25mm × 0.18mm | 80 | 1.68 |
| 140# | 35 × 175 | 0.224mm × 0.16mm | 71 | 1.52 |
| 160# | 40 × 200 | 0.20mm × 0.14mm | 60 | 1.40 |
| 180# | 45 × 250 | 0.16mm × 0.112mm | 56 | 1.09 |
| 200# | 50 × 250 | 0.14mm × 0.11mm | 53 | 1.04 |
| 220# | 55.5 × 280 | 0.14mm × 0.10mm | 50 | 0.92 |
| 240# | 65 × 330 | 0.11mm × 0.08mm | 36 | 0.71 |
| 280#(1) | 70 × 350 | 0.11mm × 0.08mm | 35 | 0.72 |
| 280#(2) | 70 × 385 | 0.11mm × 0.07mm | 32 | 0.75 |
| 300# | 78 × 700 | 0.11mm × 0.08mm | 30 | 1.39 |
| 315#(1) | 80 × 400 | 0.10mm × 0.065mm | 40 | 0.62 |
| 315#(2) | 80 × 600 | 0.10mm × 0.06mm | - | - |
| 315#(3) | 80 × 800 | 0.15mm × 0.04mm | - | - |
| 320# | 81 × 780 | 0.10mm × 0.07mm | 30 | 1.22 |
| 354# | 90 × 550 | 0.12mm × 0.05 | - | - |
| Roll width: 1-1.6m |
| Wire Mesh Filter Cloth Dutch Woven |
| Gauge No. | Mesh/Inch (Warp × Weft) | Wire Diameter
(Warp × Weft) | Reference Aperture
(um) | Weight/sq.
(kg) |
| 360# | 91 × 787 | 0.10mm × 0.10 | 25 | 1.24 |
| 400# | 101 × 900 | 0.10mm × 0.10 | 20 | 1.22 |
| 472# | 120 × 400 | 0.10mm × 0.10 | - | - |
| 500# | 127 × 1100 | 0.07mm × 0.07 | 17 | 0.81 |
| 630# | 160 × 1500 | 0.063mm × 0.063 | 15 | 0.62 |
| 650#(1) | 165 × 400 | 0.017mm × 0.017 | - | - |
| 650#(2) | 165 × 600 | 0.017mm × 0.017 | - | - |
| 650#(3) | 165 × 800 | 0.017mm × 0.017 | 25 | - |
| 650#(4) | 165 × 1100 | 0.017mm × 0.017 | - | - |
| 650#(5) | 165 × 1400 | 0.017mm × 0.017 | 16 | 0.76 |
| 685# | 174 × 700 | 0.063mm × 0.063 | 13 | 0.61 |
| 787#(1) | 200 × 600 | 0.071mm × 0.071 | - | - |
| 787#(2) | 200 × 800 | 0.071mm × 0.071 | - | - |
| 787#(3) | 200 × 1400 | 0.071mm × 0.071 | 12 | 0.8 |
| 795# | 202 × 1760 | 0.05mm × 0.05 | 10 | 0.6 |
| 850# | 216 × 1860 | 0.045mm × 0.045 | 9 | - |
| 1000# | 254 × 2000 | 0.04mm × 0.04 | 8 | 0.5 |
| 1125# | 285 × 2235 | 0.036mm × 0.036 | 7 | - |
| 1228# | 312 × 2100 | 0.035mm × 0.035 | - | - |
| 1250# | 318 × 2235 | 0.036mm × 0.036 | - | - |
| 1280# | 325 × 2300 | 0.035mm × 0.035 | 5 | 0.45 |
| 1575# | 400 × 3100 | 0.035mm × 0.035 | 3 | - |
| Roll width: 1-1.6m |
Filter Mesh Screen Benifits
- Smooth surface with no sharp edges, burrs or acute angles.
- Anti-abrasive & anti-corrosive in nature, and high filtration capacity.
- Available in different size and variants according customers order.
Filter Mesh Application
- Stainless Steel Dutch Woven Wire Cloth and other materials are utilized as filter fittings for chemical industry,
- medicine,
- petroleum,
- telecommunication,
- scientific research units and so on.
Product Tags:
|
|

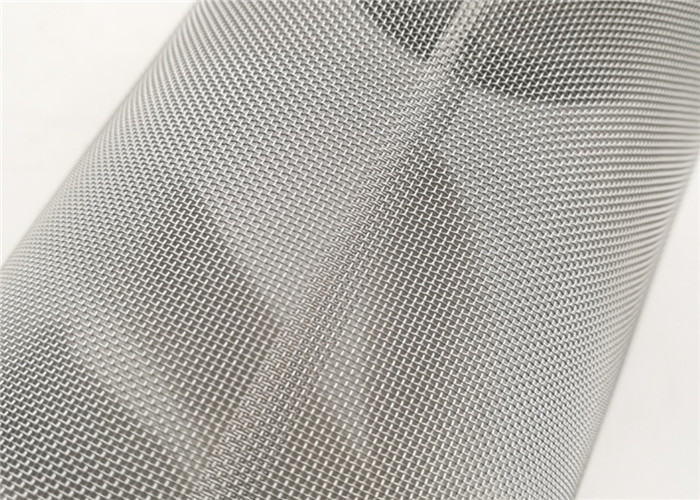

304L 1 Micron 5 Micron 10 Micron Stainless Steel Filter Mesh Images
|
