AISI 316 Hand Woven Decorative Rope Mesh Plain Weave Stainless Steel Materials
Name: Hand woven stainless steel mesh
Another name:stainless steel cable mesh, stainless steel cable netting, stainless steel rope mesh, wire rope mesh, wire cable netting, zoo mesh
Mesh material: Stainless steel 304 & 316
Wire rope diameter: 3.18mm(1/8″),3.0mm, 3/32″(2.4mm), 1/16″(1.6mm), 1.5mm, 3/64″(1.2mm) and 1.0mm
Wire rope construction: 1/8″ &3.0mm – 7×19; all others – 7×7
Mesh hole size: 12.7mm x 12.7mm(1/2″ x 1/2″) ,4/5″ x 4/5″(20mm x 20mm), 1″ x 1″(25mm x 25mm), 30mm x 30mm,1-1/2″ x 1-1/2″(38mm x 38mm), 40mm x 40mm, 2″ x 2″(51mm x 51mm), 60mm x 60mm, 3″ x 3″(76mm x 76mm), 80mm x 80mm, 90mm x 90mm, 4″ x 4″ (102mm x 102mm) and 120mm x 120mm
Mesh color: no color
Technology:pure hand-made, inter-woven
Application:zoo mesh, animal enclosure mesh, animal containment mesh, fence netting, bird netting, sports netting, graden netting etc.Product
Usages:Our stainless steel architectural rope mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.
Product Information
| material | stainless steel wire 304/316/316L |
| wire diameter | 1mm-6mm |
| usages | zoo mesh,parrots enclosure mesh,parrots fence netting,tiger fence mesh,monkey fence mesh,lion fence mesh,stainless steel bird netting, aviary mesh,animal enclosure mesh,climbing plant mesh,building mesh,architectural mesh,staircase fence mesh,security protecting mesh,bridge railing mesh. |
| wire structure | 7*7 7*19 |
| mesh hole size | 20*20-300*300,all can be customized |
| brand name | XiRun |
| type | knotted type ,open type buckle,closed type buckle,black oxidation mesh |
| material of ferrules | Tinned-copper,Nickel-plated copper, 316 stainless steel. |
| feature | 1,Excellent tensile strength and flexibility.
2,Simple and beautiful structure.
3,Economical and environment friendly.
4,Abrasion and corrosion resistance. |
Product Features
| pattern design support according to the application |
| frame design support according to the installation |
| surface treatments support , include PVDF, PVD, Spraying. |
| Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc. |
| supply install accessories, include screw, wall anchor, track, bolt and others |
| Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc |
Product Characters
(1)Light, high strength, forever anti-rust, soft, strong buffering power, fatigue resistance, impact resistance, highly broken force, stable and durable. Easy installation, suitable for any environment.
(2)Close to the nature, green mesh, protect the feathers and skin of birds and other animals from others’ bite and hurt, which supply them a safe and homelike environment to live.
(3)Good visibility, luxry, new style and unique texture, which supply the nearest way to enjoy the sight of view.
Recommended Balustrade Infill Cable Wire Mesh
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 1/16" (1.6MM) | 2.5" x 2.5" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 2" x 2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 3" x 3" | 676 LBS |
Product Tags:
|
|

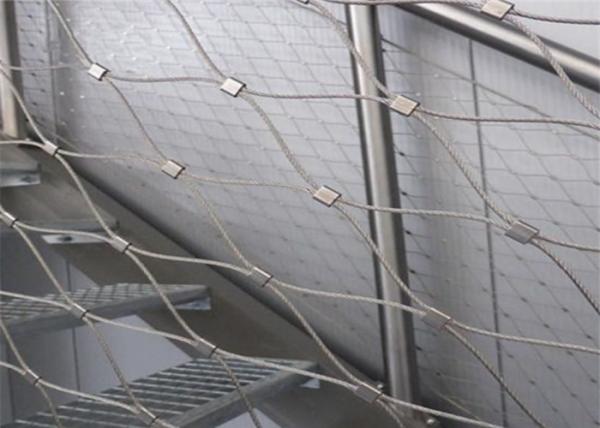

Plain Weave 50x50mm Stainless Steel Wire Rope Mesh Images
|
