Brand Name : XR
Model Number : WRM
Certification : CE
Place of Origin : CHINA
MOQ : 5 Square Meters
Price : Negotiated
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 500 Square Meters Per Week
Delivery Time : 7-10 Days After Get The Payment
Packaging Details : Package film for each piece,Several pieces packed in 1 carton
Mesh Eye Size : 70x120Mm
Length : Customized
Cable Net Diameter : 2.0Mm
Mesh Type : Ferrule Wire Rope Mesh
Material : SS304, SS316, SS316L
Feature : Handwoven
7*19 Stainless Steel Safety Encloses Overhead Fixtures Net For Boomlight
Product Description
Stainless steel cable mesh, inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
Product Specifications Sheet
Hole Size (Opening) | 1.2MM(3/64) (7 x 7 ) | 1.6MM(1/16) (7 x 7 ) | 2.0MM(5/64) (7 x 7 ) | 2.4MM(3/32) (7 x 7 ) | 3.2MM(1/8) (7 x 19 ) |
20 x 35mm | F-1235 | ||||
25 x 42mm | F-1225 | F-1625 | |||
30 x 52mm | F-1230 | F-1630 | F-2030 | ||
35 x 60mm | F-1235 | F-1635 | F-2035 | ||
38 x 66mm | F-1238 | F-1638 | F-2038 | F-2438 | |
40 x 69mm | F-1240 | F-1640 | F-2040 | F-2440 | F-3040 |
50 x 86mm | F-1250 | F-1650 | F-2050 | F-2450 | F-3050 |
60 x 104mm | F-1260 | F-1660 | F-2060 | F-2460 | F-3060 |
70 x 120mm | F-1270 | F-1670 | F-2070 | F-2470 | F-3070 |
76 x 131mm | F-1276 | F-1676 | F-2076 | F-2476 | F-3076 |
80 x 138mm | F-1280 | F-1680 | F-2080 | F-2480 | F-3080 |
90 x 154mm | F-1290 | F-1690 | F-2090 | F-2490 | F-3090 |
100 x 173mm | F-12100 | F-16100 | F-20100 | F-24100 | F-30100 |
120 x 206mm | F-12120 | F-16120 | F-20120 | F-24120 | F-30120 |
The stainless steel zoo mesh is available in sizes from 25 x 25mm (1" x 1") to 125 x 125mm (5" x 5"). In wire from 1.2mm to 3.2mm (3/64" to 1/8") in stainless steel. The hand woven netting is manufactured in 7 x 7 and 7x19 type 304 stainless steel to your requirements.
Stainless Steel Wire Rope Mesh Cable Webnet Details
Material | Stainless Steel 304 316 316L |
Wire Rope Diameter | 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm.3.2mm,4.0mm are popular(customized) |
Mesh Opeing Size | 1-1/2''x1-1/2'', 2''x2'',3''x3'',4''x4'',4.75''x4.75'' are popular(customized) |
Wire Rope Mesh Quality | Geade A |
Usage | Safety mesh,architectural mesh,zoo Mesh,Animal Enclosure,decoration mesh etc. |
Rope Construction | 7x7,7x19,1x19 |
7*19 Stainless Steel Safety Encloses Overhead Fixtures Net For Boomlight Specifications
Stainless Steel Wire Rope Mesh Safety Protection Mesh | |||||
---|---|---|---|---|---|
Rope Diameter | 1.2mm | 1.6mm | 2.0mm | 2.4mm | 3.2mm |
Structure | 7x7 | 7x7 | 7x7 | 7x7 | 7x19 |
Single Wire TS(N/mm2) | 1770 | 1770 | 1770 | 1770 | 1570 |
![]() |

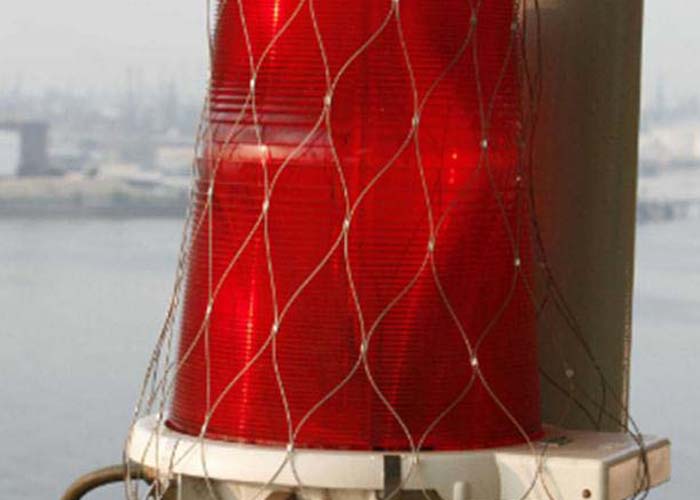

7*19 Stainless Steel Wire Rope Mesh Safety Encloses Overhead Fixtures Net For Boomlight Images |
