Brand Name : XR
Model Number : WRW
Certification : CE
Place of Origin : CHINA
MOQ : 5 Square Meters
Price : Negotiated
Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 500 Tons Per Month
Delivery Time : 7-10 days after get the payment
Packaging Details : Pallet
Material : Galvanized And Stainless Steel
Zinc Coated : Galvanized Wire:8-60g/m2;Blade:40-60g/m2 Or As Customer's Req
Application : Security And Safety
Barb Length : BTO10 12 18 22 28 30 CBT60 65
Panel Size : 1x2M,2x4M,4x8M
Sample : Provide
CBT 65 Razor Barbed Wire Hot Dipped Razor Barbed Wire For Protection
Galvanized Razor Wire Coils With Loops Description
1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / ElectroGalvanized sheet Hot Dipped Galvanized Wire
2. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
Razor Barbed sheet thickness: 0.45±0.05mm
3. Razor Loop Diameter: 600mm
Other Coil diameter for u choose: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)
Galvanized Razor Wire Coils With Loops Benefits
Galvanized Razor Wire Coils With Loops Specification
Reference number | Thickness | Wire Dia | Barb length | Barb width | Barb spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Specification of concertina razor wire | ||||
Outside diameter | No.of loops | Standard length per coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13m | CBT-60.65 | Single coil |
700mm | 56 | 13-14m | CBT-60.65 | Single coil |
960mm | 56 | 14-15m | CBT-60.65 | Single coil |
450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10m(5clips) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15m(5clips) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
Razor Barbed Wire Application
![]() |

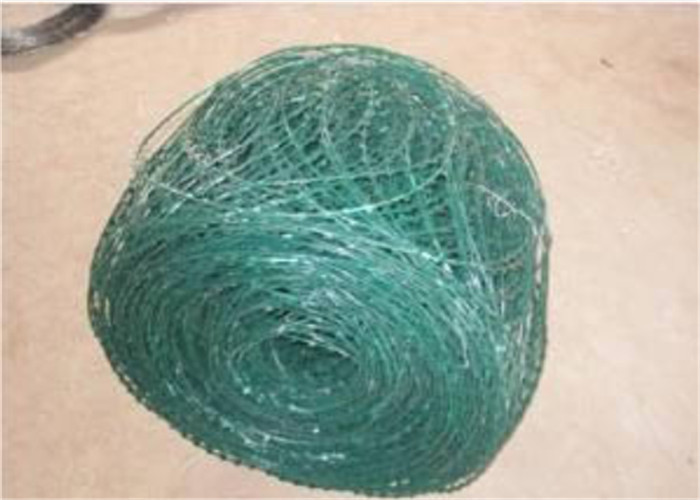

Cbt 65 Protection Coil 700mm Galvanized Razor Barbed Wire Images |
